Technical Specifications

Performance Space Main Room Dimensions

33’6″ x 39’9″

Performance Space Plans (including grid)

Download

Chairs and Tables

71 Steelcase chairs (mix of red and white) included with rental

12 folding meeting/banquet tables (30″ X 60″)

Gear

Lighting

4 x 50° ETC ColorSource LED Spots
8 x 36° ETC ColorSource LED Spots
3 x 26° ETC ColorSource LED Spots with i-Cue and DMX iris
10 x ETC ColorSource LED PARs
6 x ColorSource Linear 2 LED Striplights
ETC Element 2 Console

Video

2 x LU785 6000-Lumen WUXGA Laser DLP Projector
1 x Optoma X600 Projector

Audio

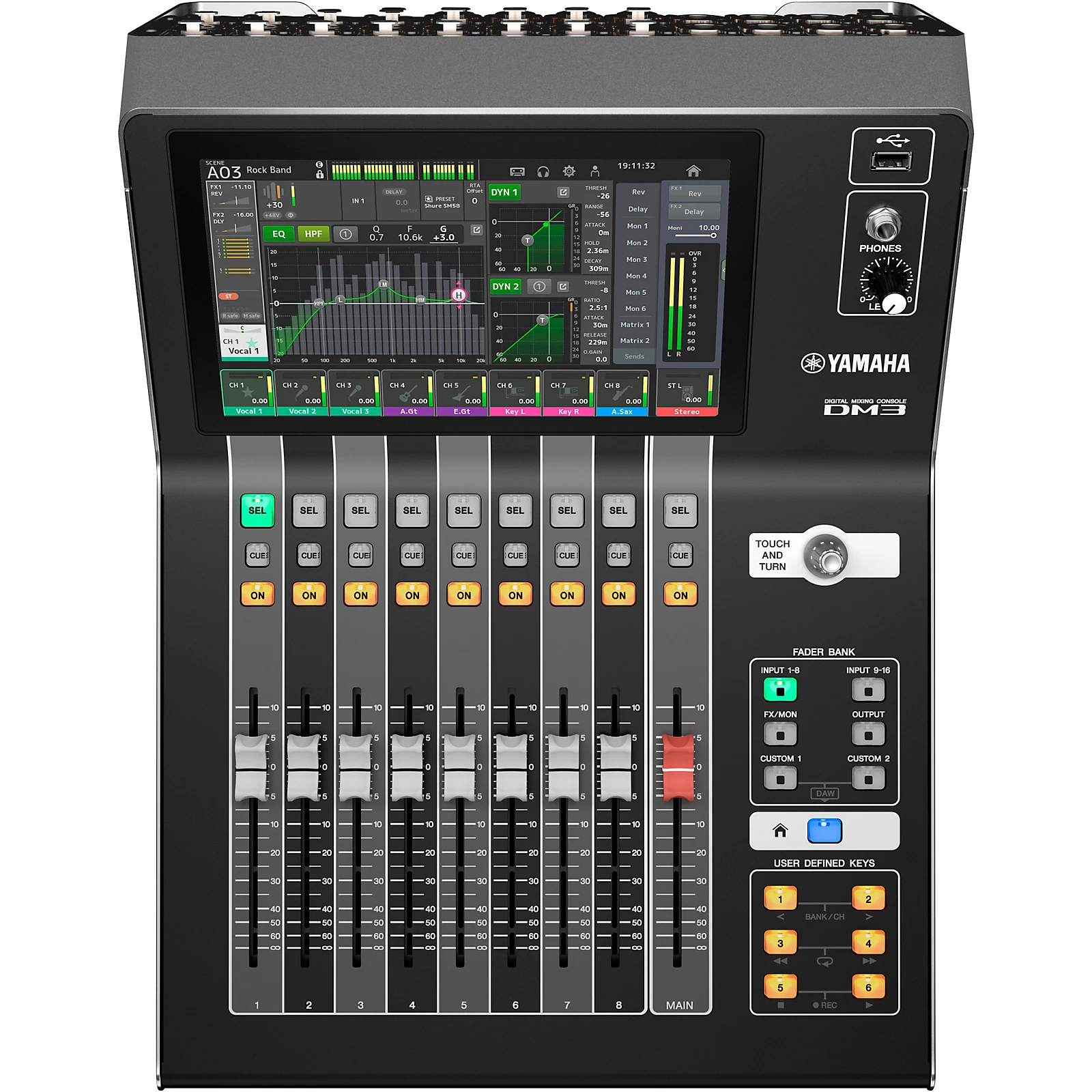

Yamaha DM3 Mixer
4 x QSC K12.2 12″ 2-Way 2000 Watt Powered Speakers
2 x QSC K8.2 8″ 2-Way 2000 Watt Powered Speakers
2 X QSC KSub – Dual 12″ 1000 Watt Active Subwoofers

Platform System

Audience platforms (Wenger StageTek system)

9 @ 8′ x 3 ft
4 @ 4′ x 3 ft
6 @ 6′ x 3 ft

legs (48 each):
8″ fixed
12″ fixed
16-28″ adjustable
24-40″ adjustable

multiple railing pieces, toe kicks, and stair units

Stage platforms (plywood)

16 @ 4′ X 4′
4 @ 2′ X 4′
4 @ 4’X4′ triangle

interlock with carriage locks and can be legged to 5″, 8″, 16″, 24″, and 32″ heights.

Masking

Black satin drape: 14 @ 40″ x 82″ for masking mezzanine

velcro panels for blacking out performance space
